Introduction:

Trade Information:

Model: FK

MOQ: 1 unit

Lead time: 20 days

Port Of Loading:Ningbo/Shanghai, China



Product Information:

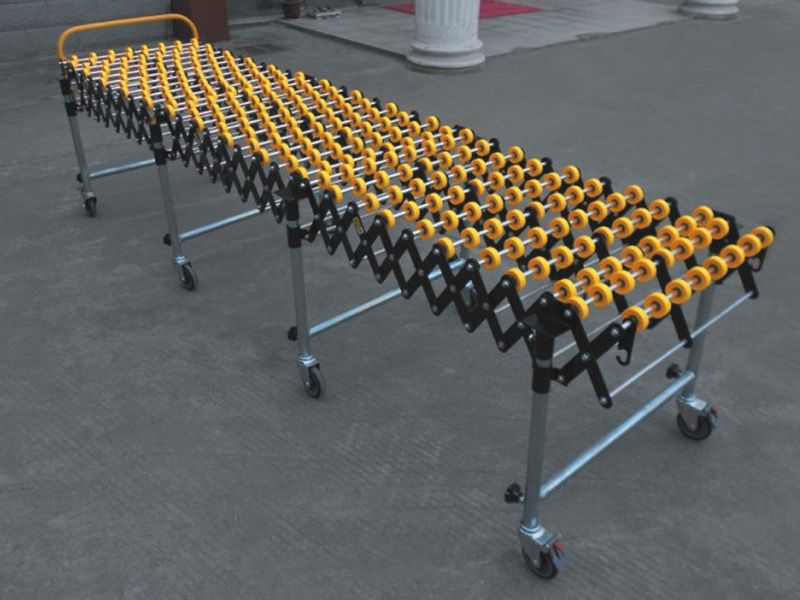

Flexible conveyor is a useful product where movability, manueverability and flexibility is necessary to transport goods. Flexible conveyor can be wheeled over to wherever it is needed, expanded and easily positioned into straight lines or around bends to convey goods exactly where they need to be. When finished, it can simply be contracted and rolled away to a different area or stored for the next time it's needed.



Product Features:

1, Convenient Movability: based on lightweight design, wherever the flexible gravity roller conveyor is needed, there only need very few staffs to move and locate. The conveyor can be adjusted to multiple angles to meet different working environments.



2, Economic: it is only needed to lift up one side of the conveyor, the goods can be transported from the high end to the low end only via gravity without any external power supply.



3, Flexibility: easy operation of extension and retraction can help people to convey goods between different working platform effectively.


ModelStageExtended LengthContracted LengthWorking WidthFrame WidthAdjustable Height
L1L2W1W2H
FK0222400
1120
500-1000mmW1+150mm
500-1200mm
FK0333500
1570
500-1000mmW1+150mm500-1200mm
FK0444600

2020

500-1000mmW1+150mm500-1200mm
FK05557002470500-1000mmW1+150mm500-1200mm
FK06668002920500-1000mmW1+150mm500-1200mm
FK07779003370500-1000mmW1+150mm500-1200mm
FK08890003820500-1000mmW1+150mm500-1200mm



General Specificatoins:
Load Capacity:40kg/m(Default Weight), 50kg/m(Optional Weight) When Extended.
Skate Wheel:Plastic.
Flexible Plate:

Carbon Steel, Powder Coated. 3mm Thickness (Default Size),

4mm Thickness(Optional Size).

Support Leg:

Carbon Steel, Zinc Plated. Φ32mm Round Tube(Default Size),

30x30mm Square Tube(Optional Size).

Castor:

Φ100mm(Default Size), Φ125mm(Optional Size).

Lockable Castor: Every Other Pair(Default Size).

Conveyor Head:
With Handle Fixed.
Conveyor Tail:With Connecting Hook Fixed.
